Position of the Moon by Spreadsheet
for a year

download

Select the table 'input': moon position

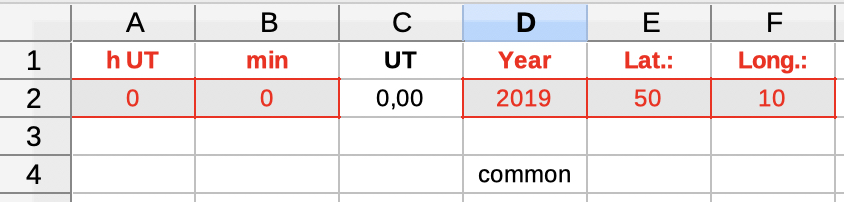

Input (red frames):

1) hour UT, min

2) year

3) geogr. latitude und longitude (eastern longitude positive)

Don't modify any other cell.

moon position
The table 'calc' performs the calculations, using a lot of auxiliary variables. Don't edit any cell. Just ignore it.

Select 'elev az' to see data and diagrams of elevation and azimuth.
Select 'illum' to see data and diagrams of the illuminated fraction. illuminated fraction
Select 'distance declin' to see data and diagrams of geocentric distance and declination. moon distance
Select 'L  B' to see data and diagrams of ecliptic longitude and latitude.
Select 'sol ecl' to explore solar eclipses. solar eclipse
Select 'lun ecl' to explore lunar eclipses. lunar eclipse



elevation azimuth

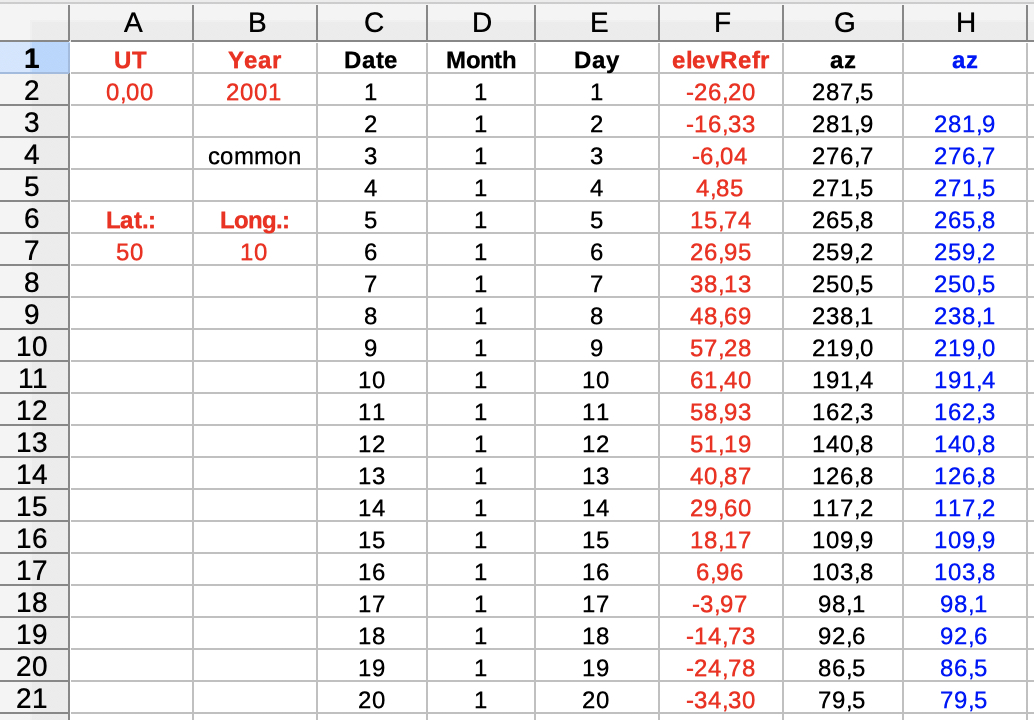

Example: 2001, 0:00 UT at 50°N, 10°E:

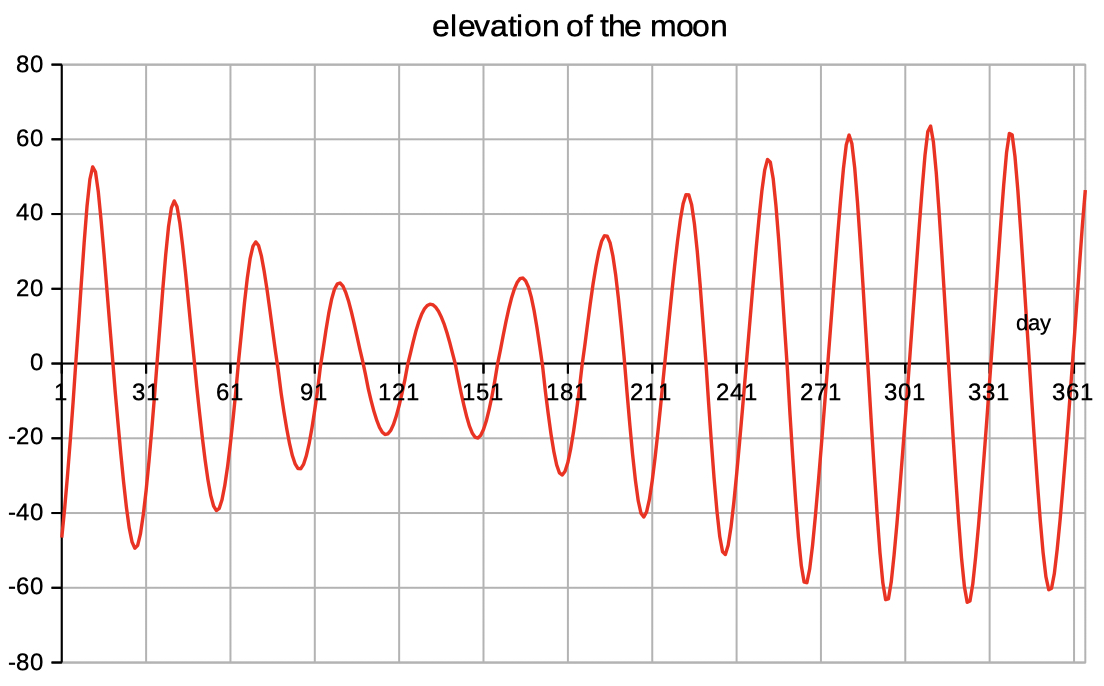

moon elevation
          azimuth


***

moon year
            position Excel spreadsheet download

The atmospheric refraction is calculated ("elevRefr") by
1.02/(60*tan(K*(elev+10.3/(elev+5.11))))

Comparing the airless elevation results of my spreadsheet with the 4 decimal values of MICA
the mean absolute error is  (0,016 ± 0,016)° in 1990 to 2050.

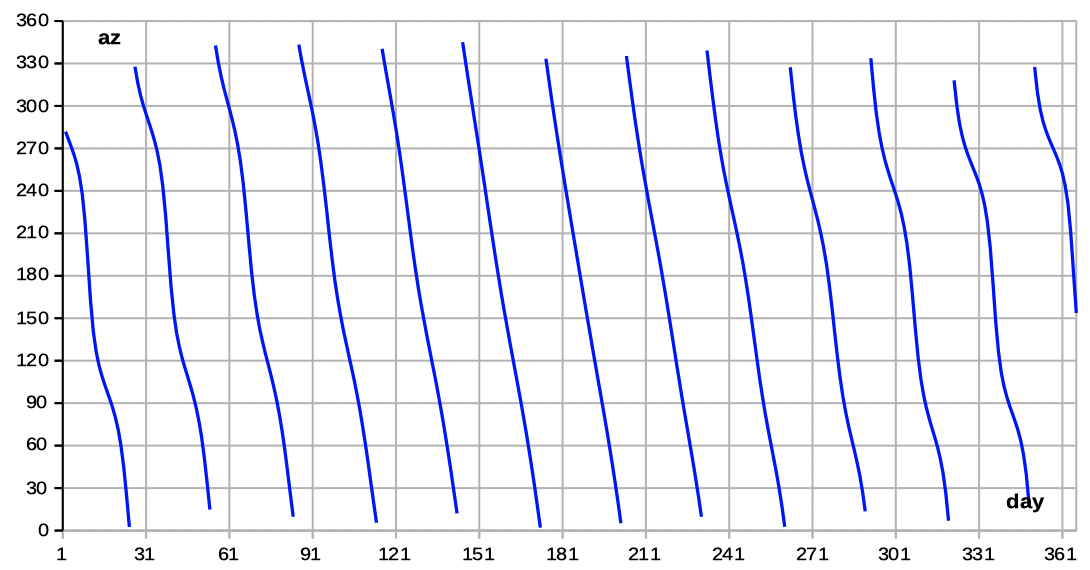

Azimuth:
moon azimuth


Azimuth is measured from North(0°) -> East(90°) -> South(180°) -> West(270°) -> North (360°).

 ***

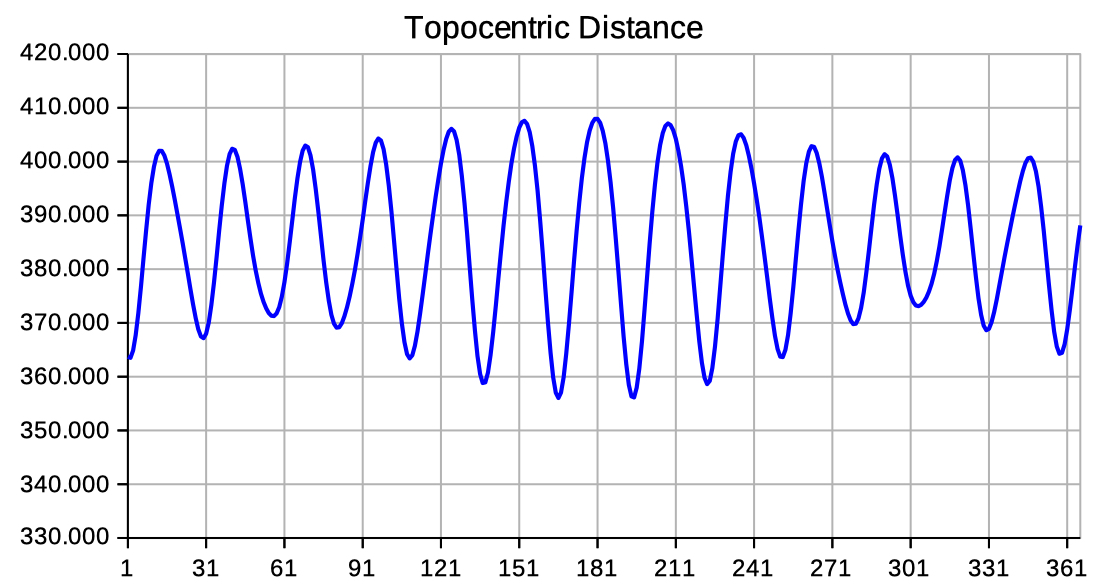

topocentric distance of the moon

At 50°N 15°E the abs. error at 00:00 UT for 1st of month (reference MICA) is
(2.8 ± 2.0) km


****

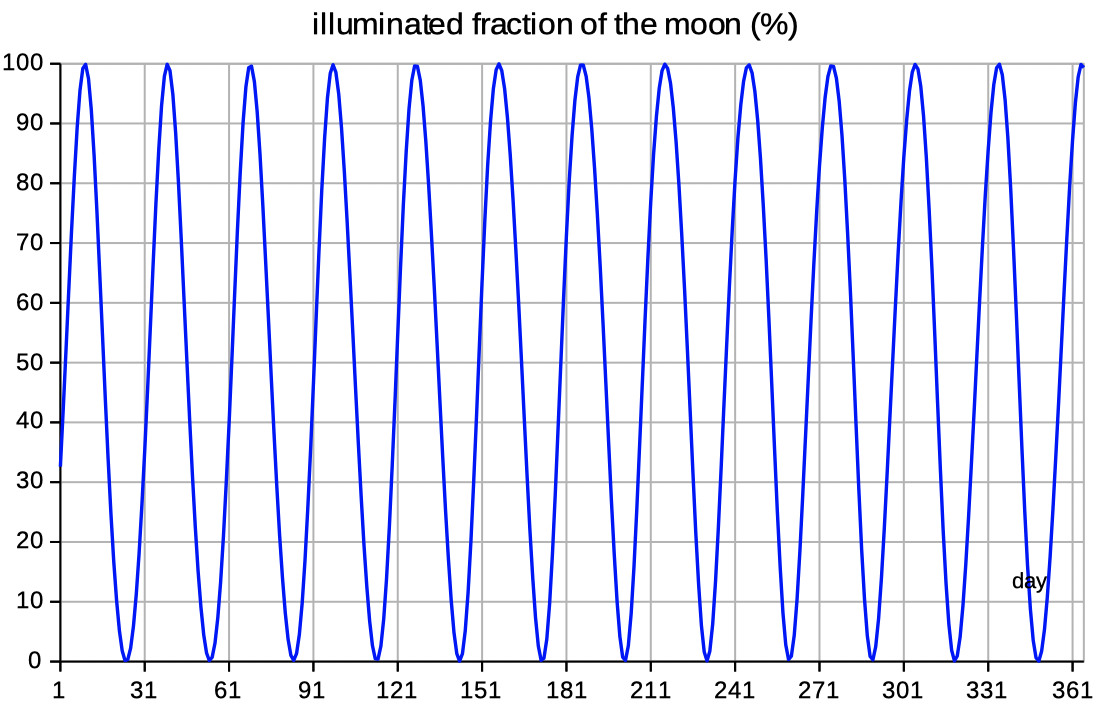

illuminated fraction
The illuminated fraction of the moon is geocentric.

moon year position Excel
        spreadsheet download



Comparing the results "Lmoon" (ecliptic longitude) of my spreadsheet with the 7 decimal values of HORIZONS Web-Interface
(NASA JPL)
the mean absolute error in 1850 to 2200 is (0,52 ± 0,28)°.


***

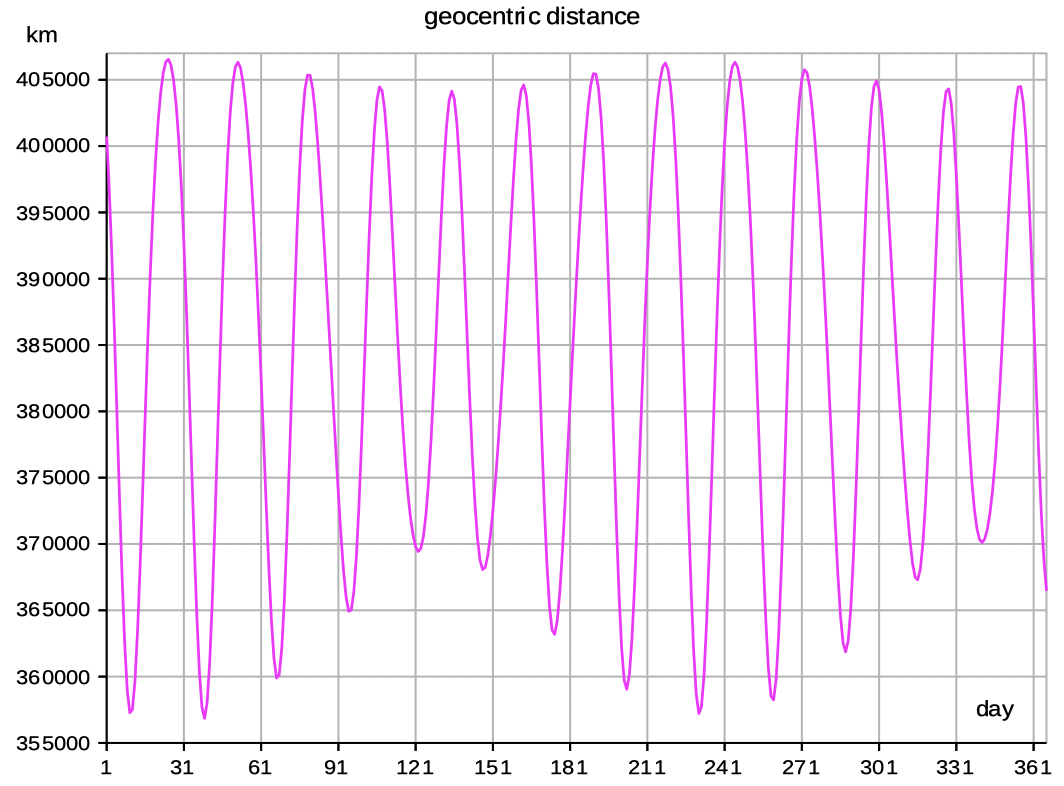

distance earth

The geocentric distance of the Moon is computed by Meeus (Astronomical Algorithms, Table 45.A, 46 trigonometric terms):

moon distance


In 2001 the smallest perigee distance is that of Feb 9 at 0 UT: 358,006 km.


According to Meeus (Astronomical Algorithms, chapter 48),
extreme perigee and apogee
between the years 1500 and 2500 occur:
on 2257 Jan 1: 356,371 km
on 2266 Jan 7: 406,720 km

Results of my spreadsheet
moon_day:
356,374 km at 13:00 UT
407,716 km at 7:30 UT


***

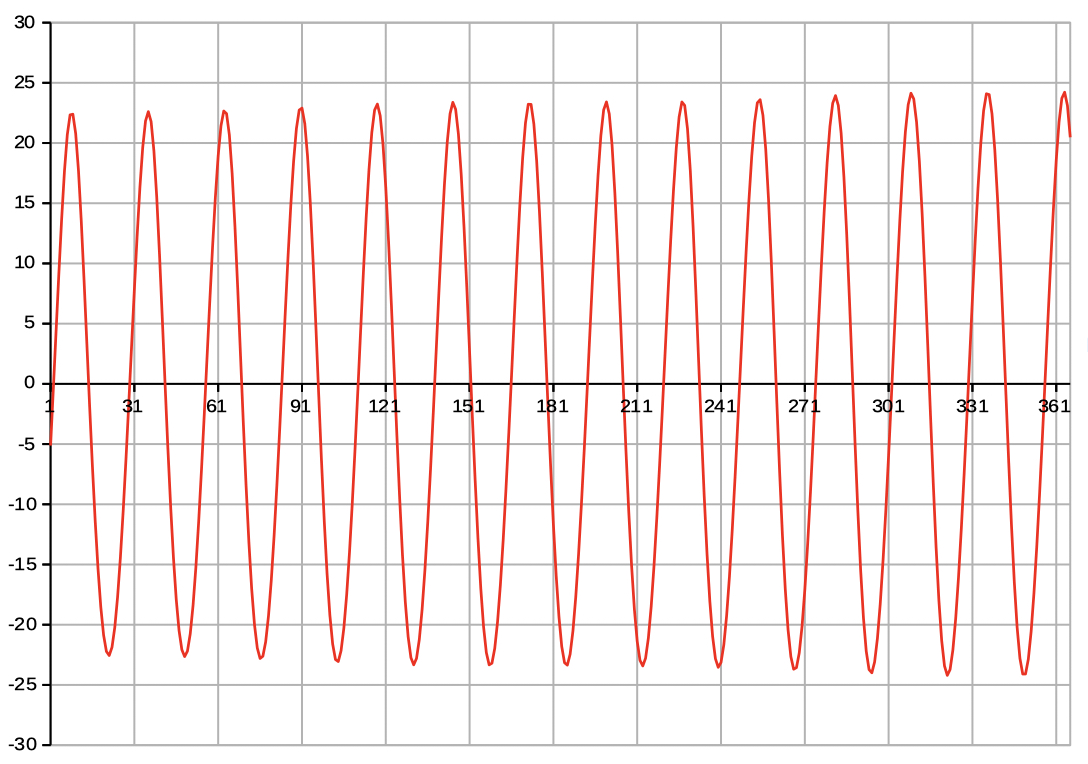

The declination of the Moon in 2001:

Moon
                      declination


The extremes in the Moon's negative/positive declination ranges
from about -18.2° to -28.7° and +18.2° to +28.7° in a period of 18.6 years.

***

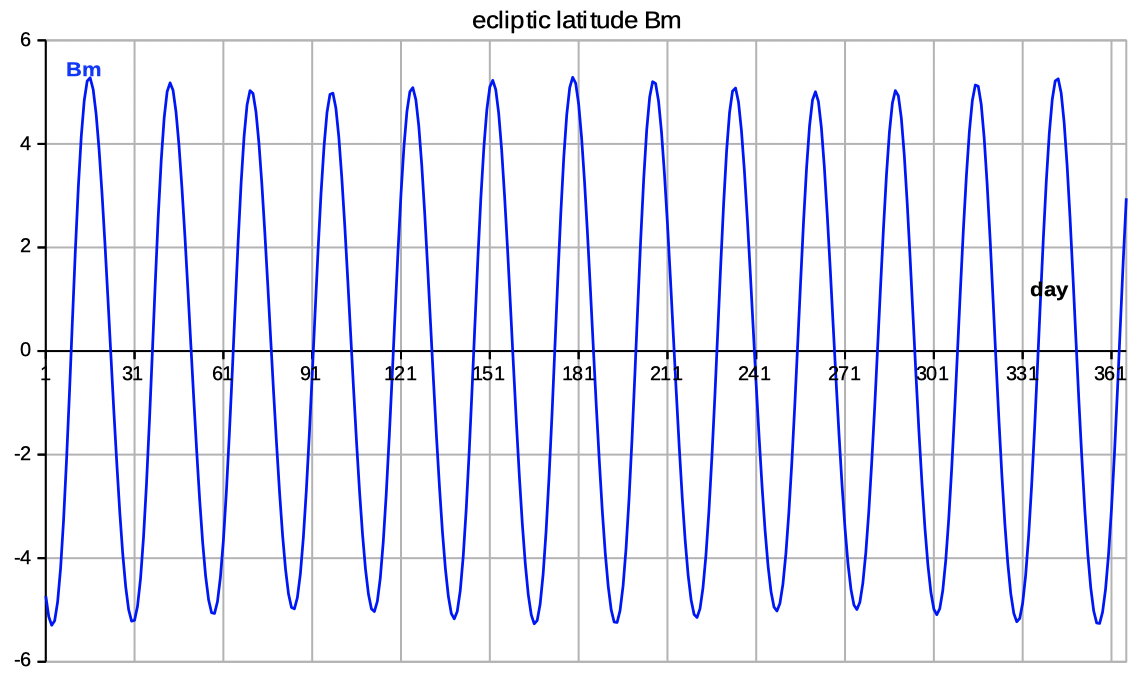

ecliptic latitude
                        longitude

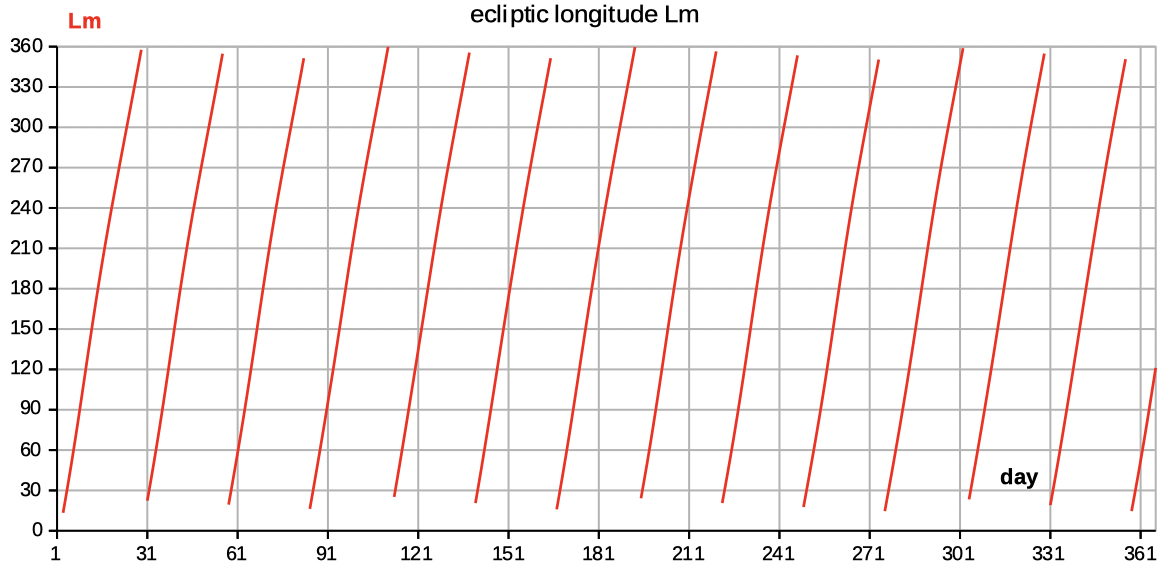

ecliptic longitude


ecliptic latitude

***





solar eclipse

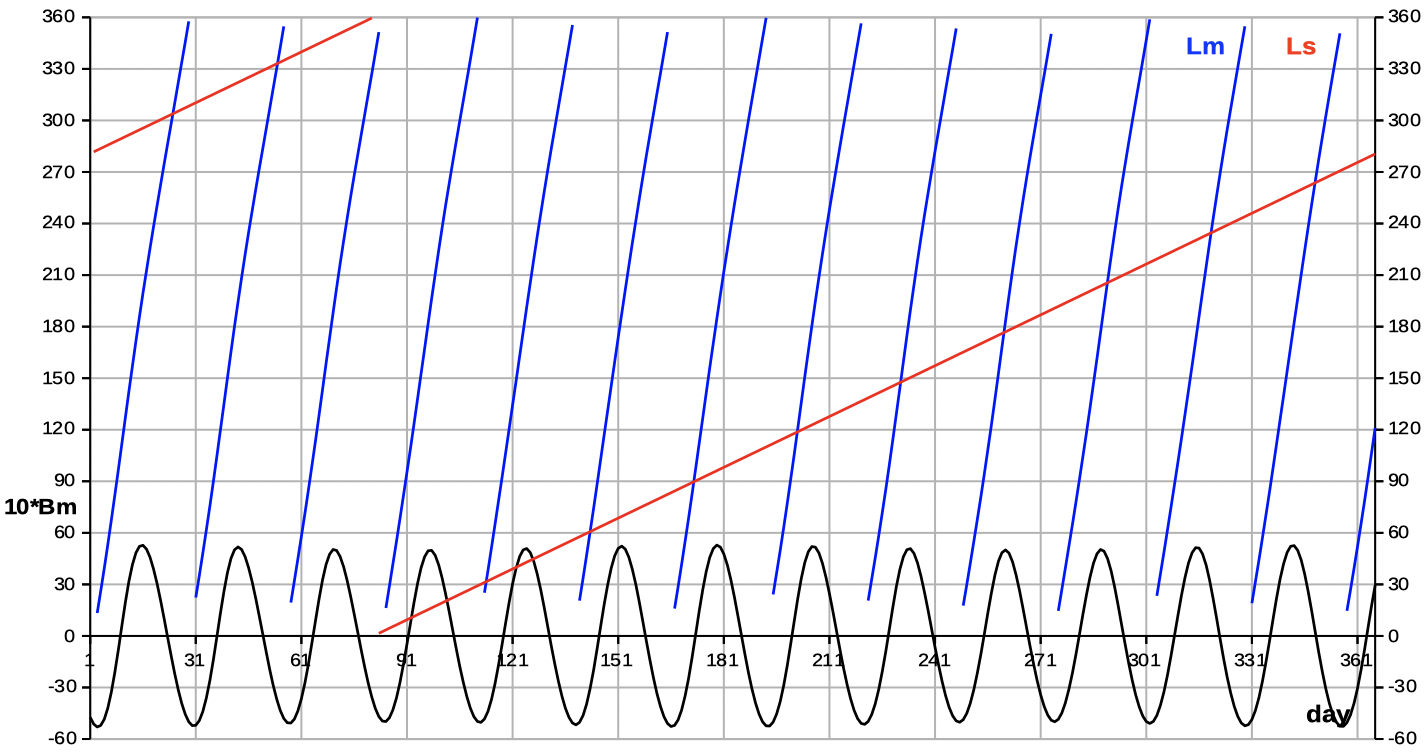

Explore the conditions for solar eclises:

|Lsun-Lmoon|
='small'  and |Bmoon|='small'

solar
                                eclipse

***




lunar eclipse

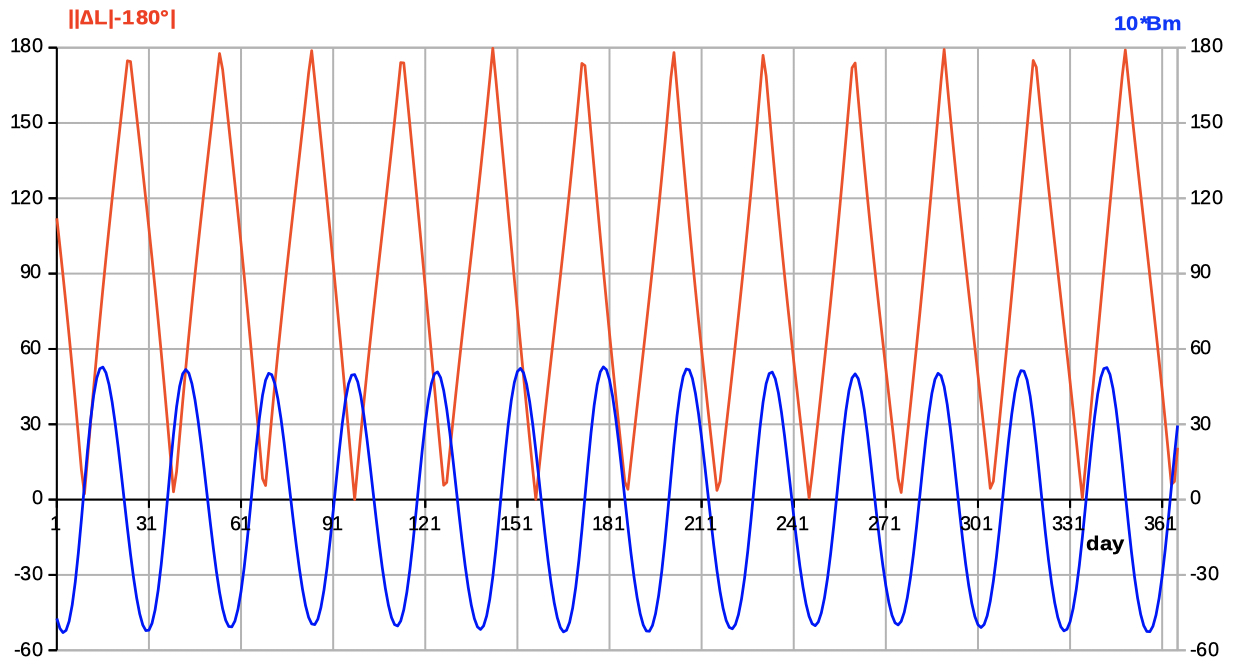

Explore the conditions for lunar eclises:

||Lsun-Lmoon| -180°|= 'small' and |Bmoon|='small'

lunar
                                eclipse

Lunar eclipse data (NASA):
2001 Jan 09, 20:21:40, Total (day 9)
2001 Jul 05, 14:56:23, Partial (day 186)
2001 Dec 30, 10:30:22, Penumbral (day 364)

***




Download Excel speadsheet (Windows und Mac):

moon_year.xlsx   (MS Excel)

moon_year.ods   (LibreOffice, recommended)

Updated!
