The Sun's Meridian Transit

The Meridian of Santa Maria degli Angeli e dei Martiri in Rome

latitude longitude
The coordinates of the Basilica are:
41° 54' 11'' N, and 12° 29' 51'' E
gnomon height

Height of the gnomon hole.
Enter value and press return key.

Use the keys "y", "m", or "d" to increase the year, month, or day,
or shift key and
"y", "m", or "d" to decrease the year, month, or day.
Use the command key and "u" or "d" to move up or down.
Use "Reset" from the Details menu to reset the position and zoom.
year century
The year is 2009.

Select "Write Data" or "Write Table" from the Details menu to open data windows.

Santa Maria degli Angeli

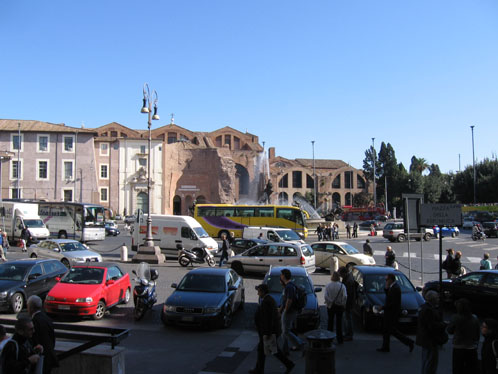

The Basilica di Santa Maria degli Angeli e dei Martiri is a section of the remaining structure of the Baths of Diocletian (Thermae Diocletiani, built about AD 300) on the Quirinal Hill of Rome, nowadays the Piazza della Repubblica.

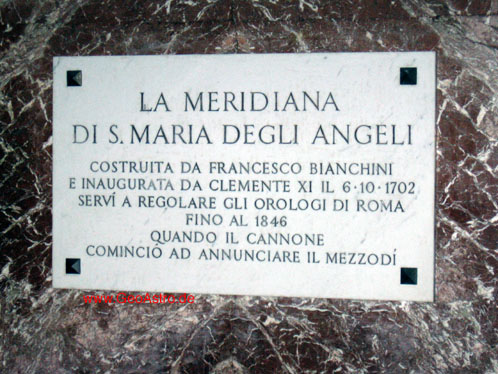

At the beginning of the eighteenth century, Pope Clement XI (1649-1721) commissioned Francesco Bianchini (1662-1729) to build a meridian line within the basilica to check the accuracy of the Gregorian reformation of the calendar (1582).

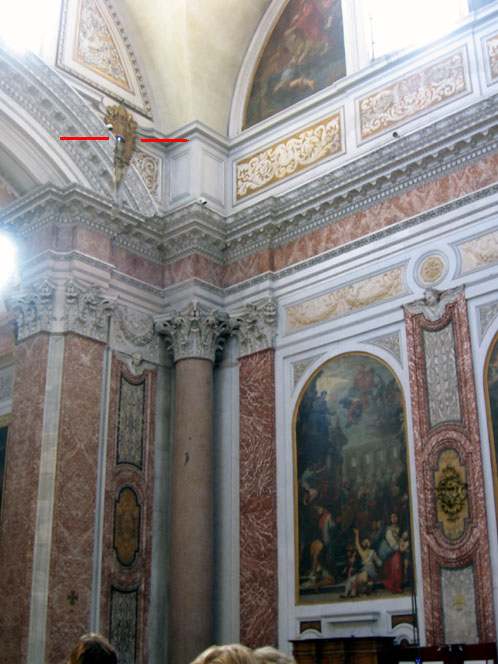

The sun shines through a small hole in the southern wall to cast its light on the meridian line each day (aperture gnomon).

aperture gnomon pin hole pinhole

hole aperture gnomon

The aperture gnomon.

The mean transit time (solar noon) is 11:10 UT, which varies according to the equation of time from around
10:54 UT to 11:24 UT.

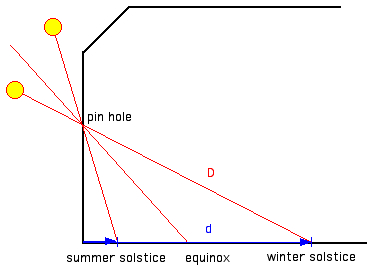

The distance d
of the disk of light along the meridian line and the size (horizontal and vertical) are increasing from summer solstice to winter solstice, whereas the time t to cross the meridian line remains nearly constant. The value of pc (partes centesimae) is the distance of the disk of light in units of 1/100 of the aperture height above the pavement.

disk of light

The diameter S of the disk of light is mainly determined by the apparent diameter α of the Sun:
S = D·tan α

The duration t (in seconds) of the meridian transit depends on the Sun's diameter α (arc seconds) and the declination δ:

duration Sun meridian transit

sun meridian transit duration time

The diameter a of the aperture and an amount due to diffraction (2·D·1.22·λ/a ≈4 mm) has to be added to S.

summer solstice
summer solstice
20 x 21 cm
d=6.79 m

t=2.3 min pc=33.3
equinox α=0.535°
26 x 35 cm
d=18.2 m
t=2.2 min pc≈89.5
winter solstice α=0.542° winter solstice
47 x 113 cm
d=44.25 m
t=2.4 min pc=217.8

The diameter of the aperture is 6.6 mm
The image is of greatest sharpness if the distance D from the aperture (diameter a) to the surface is given) by (wavelength λ):

D = 19.8 m (for a=6.6 mm, λ=550 nm)

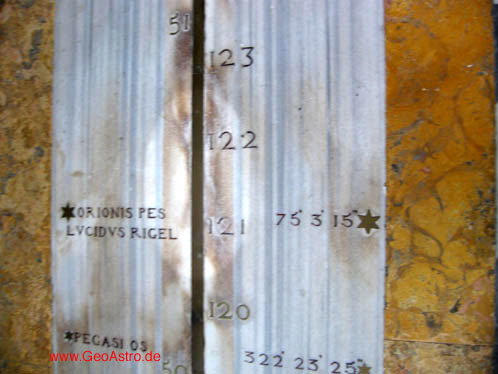

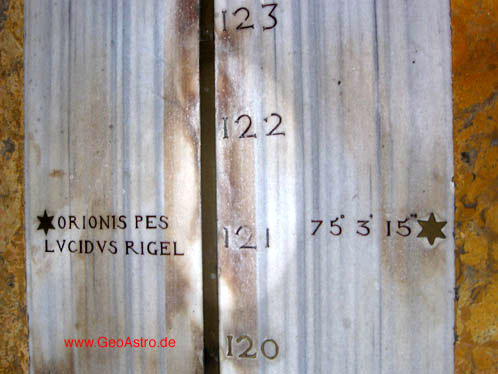

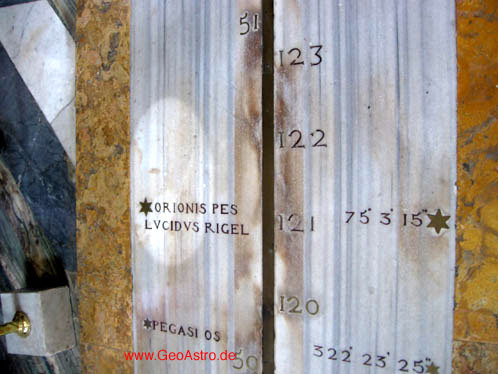

My photos of the meridian transit on 2009, October 15:

computed time of transit: 10:55:45 UT, partes centesimae scale 121.6

meridian transit

meridian transit

meridian transit

In Europe the Julian calendar was in use since the 4th century. The spring equinox was set to the date 21 March in the year 325 by the council of Nicea. By the year 1582, the spring equinox was occurring on March 11.
Pope Gregory XIII ordered that 10 days would be removed from the calendar so that the spring equinox would return to March 21. It was decided that the days October
5-14 of the year 1582 would be skipped during the transformation from the Julian to Gregorian calendar.

Gregory XIII

The tomb of Pope Gregory XIII in St. Peter's Basilica

gregorian calendar

Detail of the tomb of Pope Gregory XIII in St. Peter's Basilica:
discussion of a calender reform.

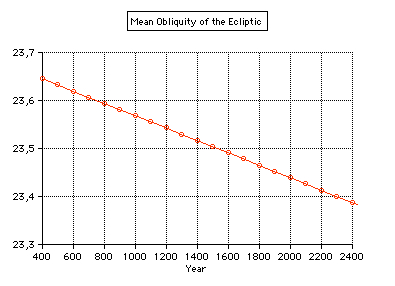

obliquity of the ecliptic

In the past centuries the obliquity of the ecliptic decreased by 0.013° per century. The result is a shift of the sun spot on the meridian line:

1400 6.76 m
44.46 m
1600 6.77 m
44.43 m
1800 6.78 m 44.38 m
2000 6.79 m 44.31 m
2200 6.80 m 44.25 m
