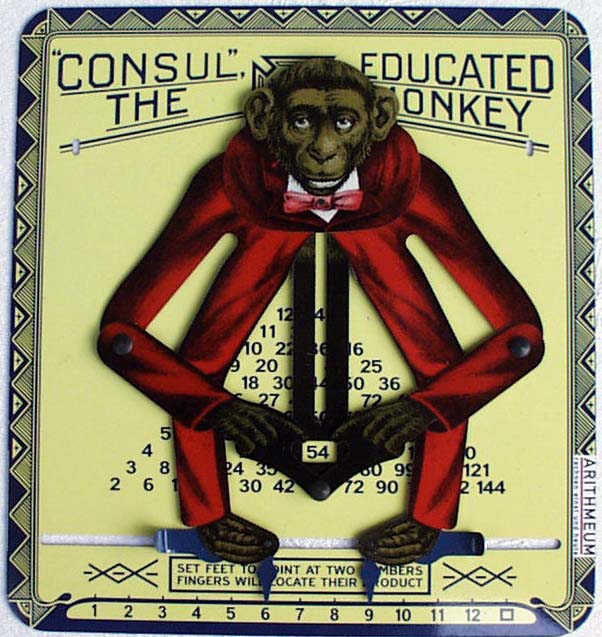

The 'Educated Monkey' was patented in 1916 by W. H. Robertson. It is a toy 'for educational purposes ... to stimulate the interest of children in the study of numbers'.



sum product ass
                multiply You can add or multiply the two numbers.
cursor
Use the cross hair cursor and click to set a foot on a number.
Repeat to set the second number.
key
To set the same foot again, press command key to catch it, then release the key and click.
square     double
In product mode set the right foot on the square to read the squares of the numbers,
in sum mode set the right foot on 'D' to read the double of the numbers.
construction
Check the box to reveal the geometric construction.

consul educated monkey construction

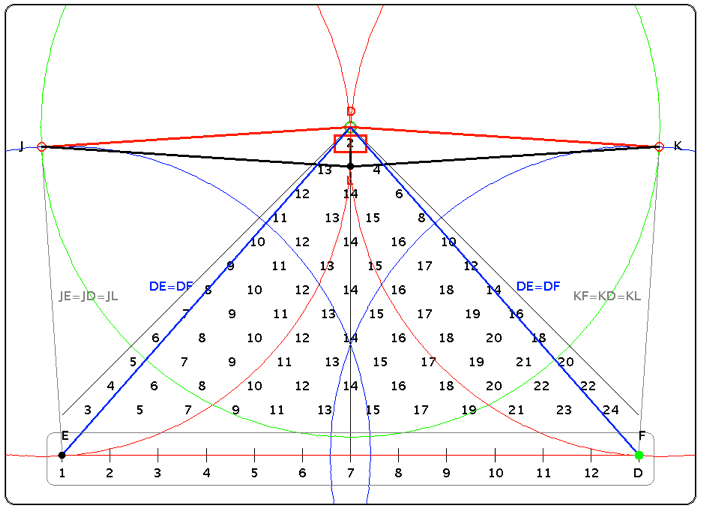

Mechanical Construction

The three distances of stud J to studs D, L, and E are equal each to each:

JD = JL = JE
and likewise:
KD = KL = KF

Hence the quadrangle JLKD is a rhomb.

The angle between the upper arm (red) and the leg (blue) is φ = 45° in my simulation. Then the triangle of the number table is including a right angle at its top.

A mathematical analysis (D. Haftendorn) proves that if the ratio of the distances is

ED/JD = 2*cos(45°) = sqrt(2)=1.41

the indicator for the result is moving along a straight line with slope m = 2*sin(45°)/sqrt(2) = 1 or 45°.


construction educated monkey
