The Azimuth Angle of the Sun
coordinates

Java applet Apparent Movement of a Star (on this server, with kind permission of Walter Fendt).

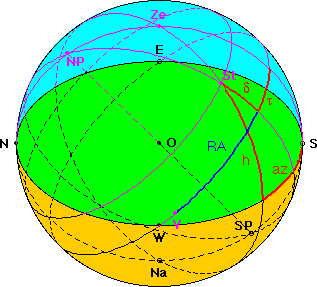

The azimuth angle Az of the Sun or a celestial body (St) is depending on it's declination Dec and altitude Alt, and on the latitude Lat of the observer (Astronomical/Nautical Triangle):
Sun azimuth angle

At sunrise (Alt=0°) the formula is more simple:
azimuth at sunrise

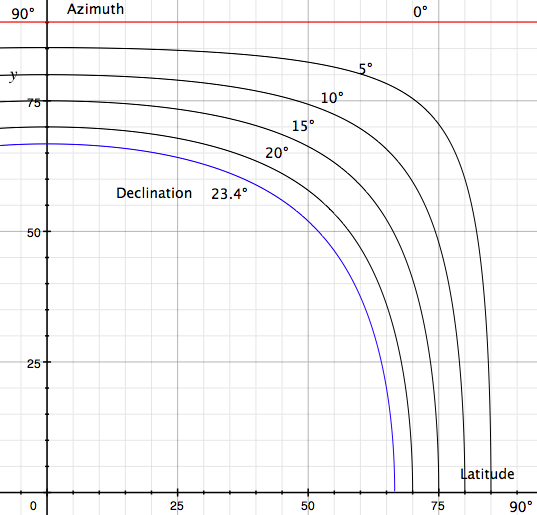

The following diagram is showing the azimuth angle at sunrise for different declinations (Dec=0°, 5°, 10°, 15°, 20°, 23.4°) as a function of latitude:
Azimuth at sunrise declination latitude


Using the Local Hour Angle (LHA) the azimuth angle is given by:
Azimuth angle



Azimuth Angle Az as a function of Latitude for different Declinations and Hour Angles.



Azimuth Angle Az as a function of Hour Angle for different Declinations and Latitudes.
Azimuth Angle Az as a function of Declination for different Hour Angles and Latitudes.
Web Links

Astronomical Triangle

2009, Feb 28
